CHIONE P3-240U
NEXT GENERATION COOLING

NEXT GENERATION COOLING
The CHIONE P3 high-performance liquid cooler is a 240mm radiator AIO fine-tuned for next-generation cooling and equipped with a personalized LCD display. The AIO features a highly customizable IPS LCD display, a motor pump with a high-performance three-phase drive, an optimized cold-plate design, a micro-embedded fan within the pump head, and two fine-tuned AEOLUS M3 PWM fans to offer top-notch cooling power on any setup.
PERSONALIZED LCD DISPLAY
The CHIONE P3 Series comes with a brilliant IPS LCD display, allowing you to monitor your system performance statistics in real-time, while also personalizing the screen with any images or animated GIFs as background for system statistics. The pump head is equipped with a stunning ARGB lighting ring with pre-installed lighting modes for a dazzling display of lighting effects.
S-TIER COOLING PUMP
The AIO pump is enhanced by a high-performance three-phase drive motor water pump up to 2800RPM, a micro-embedded fan for enhanced heat dissipation around CPU VRMs and surrounding components, and a high-density copper base cold plate optimized for seamless CPU fittings to provide maximized cooling performance.
SUPERIOR RADIATOR
CHIONE P3 series is equipped with a premium-class radiator sporting a 25% increase in radiator thickness and high-density fins for a more reliable cooling ability.
PERFORM IN STYLE

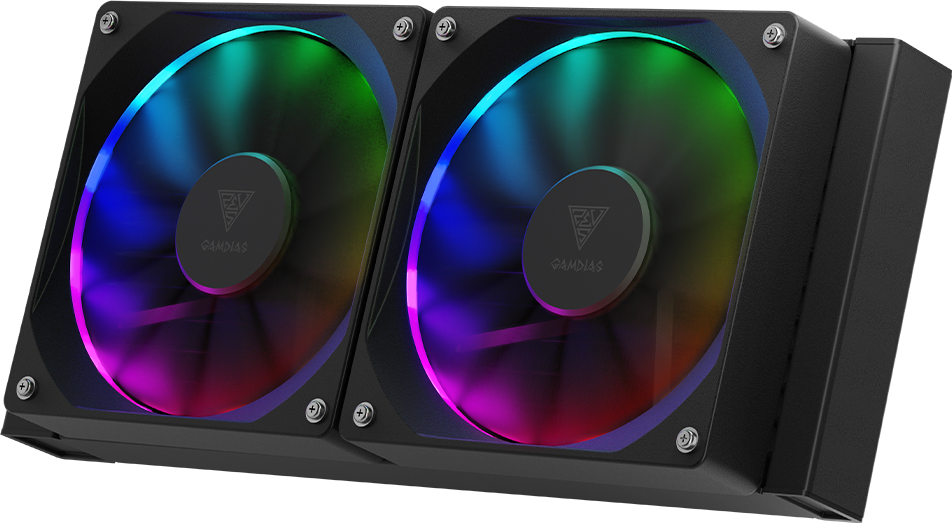

Built with an emphasis on superior airflow performance, the radiator AEOLUS M3 PWM fans provide high static pressure of up to 69.01 CFM for optimized airflow guidance. The fans feature fully addressable low-profile ARGB lighting providing a subtle and modish look.

| Model | CHIONE P3-360U |
|---|---|
| Package Contents | Cooler - 1 Fan - 2 USB AEOLUS Box - 1 Thermal Grease - 1 Mounting Kit - Yes |
| LIQUID COOLER - FAN | Dimensions - 120 x 120 x 25 mm Speed - 800 - 2000 RPM±10% Noise Level - 10 - 31 dBA Air Flow - 69.01 CFM Air Pressure - 2.37 mmH2O Bearing - Hydraulic Rated Voltage - 12 V (Fan) / 5V(LED) Connector - 8 pin Support PWM Control - Yes |
| LIQUID COOLER | Radiator Dimensions - 277 x 119 x 27 mm Tube Material - Teflon Base Plate Material - Copper Radiator Material - Aluminum Sleeved Tube - Yes Pump Rated Voltage - 12 V (Pump) / 5V(LED) Pump Connector - 3 Pin Compatibility - LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / TR4 TDP - 270W ±10% Support Motherboard RGB Sync Connectors - 5V 3-pin addressable (digital) RGB header Only |
| LIQUID COOLER - CONTROL BOX | Model - USB AEOLUS Box Dimensions - 83 x 59 x 14 mm Power Connector - SATA Support LED type - 5V 3-pin Addressable (Digital) LED Support Daisy Chain - Yes Built-In Magnet - Yes |
