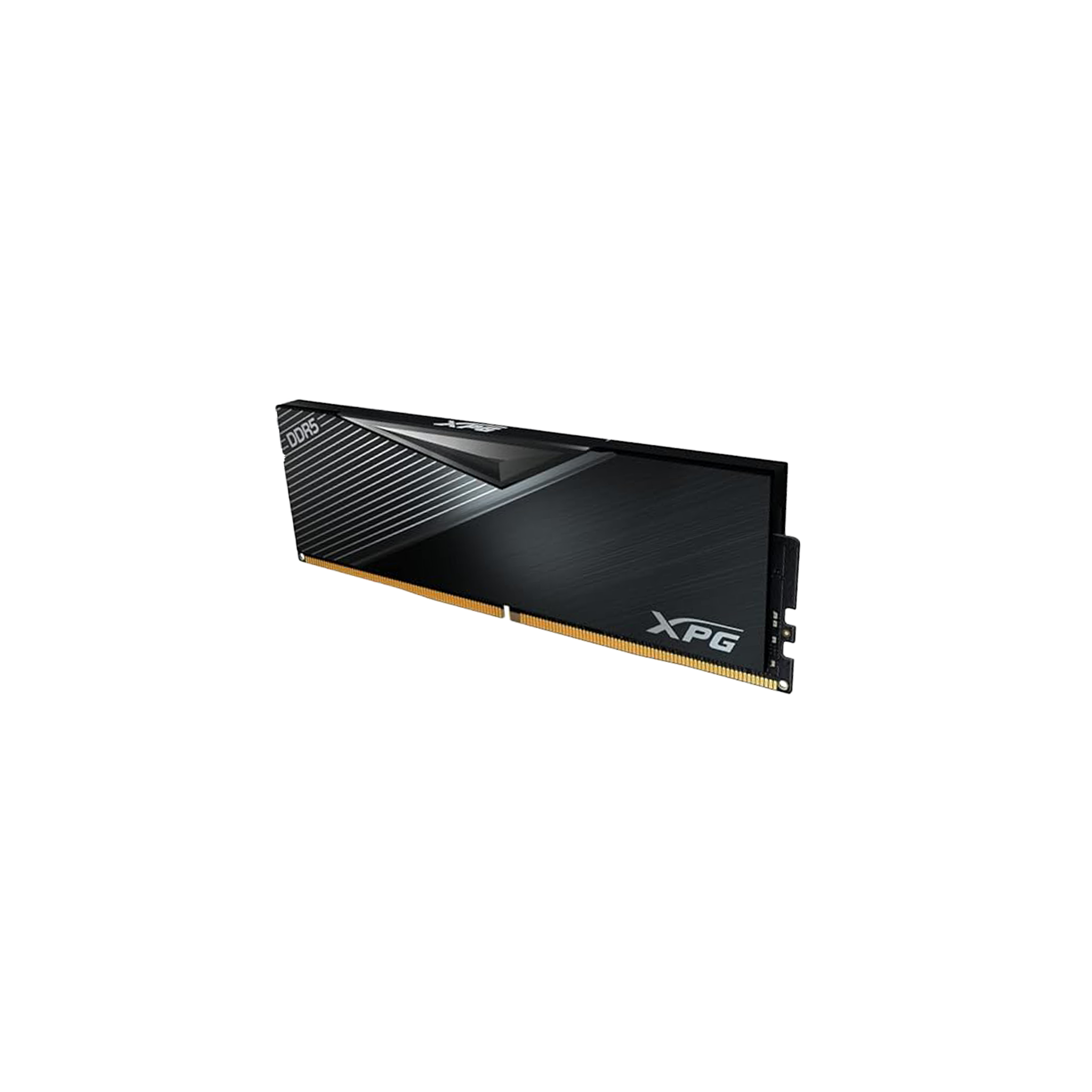

LANCER RGB DDR5 DRAM MODULE
- New speed benchmark in gaming memory
- Customizable RGB light effects
- PMIC for power supply stability
- On-die ECC error correction
- Supports Intel® XMP 3.0 and AMD EXPO for easy overclocking
The LANCER RGB DDR5 also comes in Blizzard White for those looking to create a distinctly, all-white PC build.
The XPG LANCER ushers in the DDR5 era for gaming memory. Reaching frequencies of up to 8000 MT/s, It will give you a major performance boost for gaming and overclocking.
*To overclock to 8000MT/s, a motherboard supporting the Intel® Raptor Lake-S Refresh (14th Gen) CPU from the following list is recommended.
ASRock Z790 NOVA WIFI
ASUS ROG MAXIMUS Z790 APEX
GIGABYTE Z790 AORUS XTREME X
Set the RGB lighting the way you want it. Choose from different effects (static, breathing, and comet) or sync the lights with your favorite jams via Music Mode. All this can be done through RGB control software from all the major motherboard brands.
XPG Prime lighting control software not only allows you to set unique DRAM lighting effects, you can also sync all Prime supported XPG RGB products to create imaginative light shows and shape your own Prime ecosystem.
*After selecting Prime as your lighting control software, please be sure to close all other lighting control software from manufactures such as ASUS/ASRock/Gigabyte/MSI. Conflicts may occur when using Prime with motherboard RGB software. For details, please refer to the FAQ.
**If you wish to use Prime after installing MSI lighting control software, you must uninstall MSI software, turn off the power, and then reboot before installing and enabling Prime.
The XPG LANCER DDR5 features a built-in Power Management IC (PMIC) that enhance power supply stability. It's lower operating voltage also make LANCER more power efficient than DDR4.
With On-die error correcting code (ECC) this module can correct errors in real-time to provide increased stability and reliability.
High-quality ICs and PCBs ensure uncompromised performance and reliable overclocking, ideal for discerning gamers and overclockers.
Support for AMD EXPO (EXtended Profiles for Overclocking) and compatibility with the latest platforms for reliability and stability.
* AMD EXPO only supported by DDR5 memory with a speed of 6400MT/s or less.
With support for Intel XMP 3.0, get overclocking easily without the need to hassle with BIOS settings. There is no need to repeatedly adjust and fine-tune overclocking parameters.
DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.
DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length and Prefetch are also doubled. And to ensure data integrity, they feature error correcting code (ECC) technology.
The biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MT/s and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.
- DDR5
- Form Factor
- U-DIMM
- Color
- Black / White
- Capacity
- 16GB / 32GB
- Speeds
- 5200, 5600, 6000, 6400, 6800, 7200, 8000MT/s
- CAS Latencies
- 30-40
- Operating Voltage
- 1.25V-1.45V
- Operating Temperature
- 0°C to 85°C
- Dimensions (L x W x H)
- 133.35 x 43.56 x 8mm
- Weight
- 72.4g
