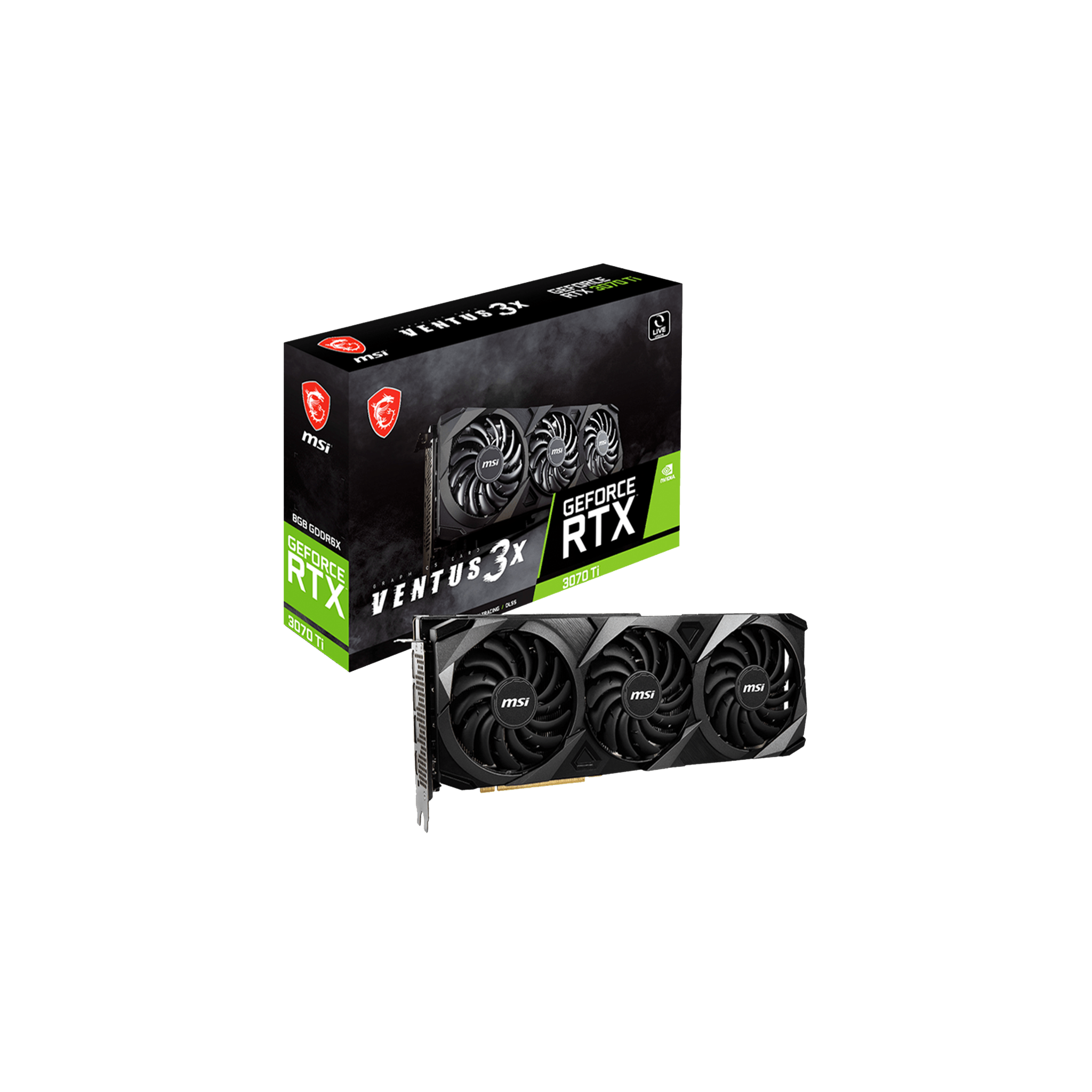

GeForce RTX™ 3070 Ti VENTUS 3X 8G OC
- The GeForce RTX™ 3070 Ti graphics card is powered by Ampere—NVIDIA’s 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory, it gives you the power you need to rip through the most demanding games.
Core / Memory
- Boost Clock / Memory Speed
- 1800 MHz / 19 Gbps
- 8GB GDDR6X

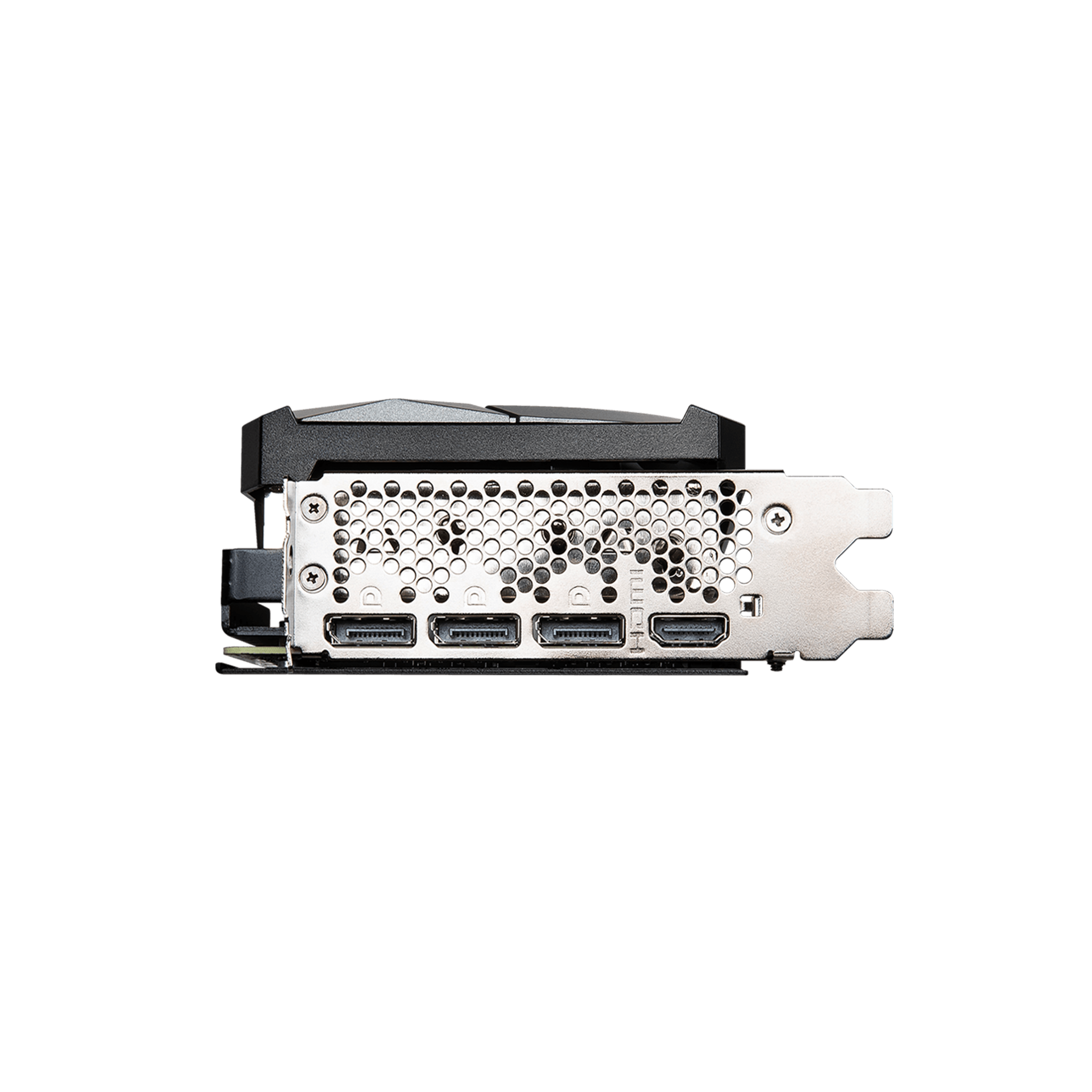

- DisplayPort x 3 (v1.4a)
- HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
Metal backplate
- Premium metal backplate provides a nice visual finish to the card. It also strengthens the card and thanks to some cleverly place thermal pads even helps to keep the temperature low.
Core Pipe
- Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.

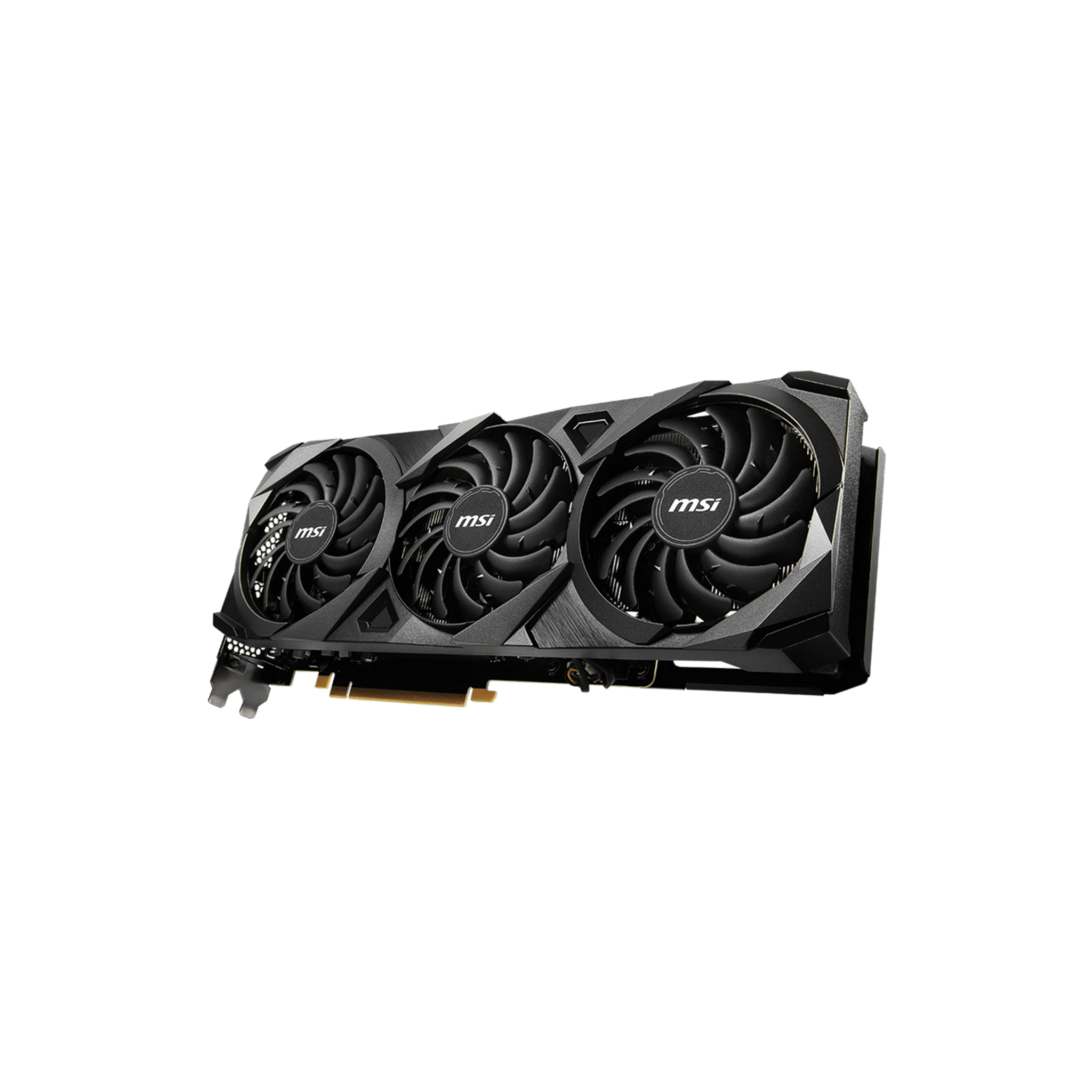

Triple Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
-
Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.
TECH SPECS
MODEL NAME GeForce RTX™ 3070 Ti VENTUS 3X 8G OC
GRAPHICS PROCESSING UNIT NVIDIA® GeForce RTX™ 3070 Ti
INTERFACE PCI Express® Gen 4
CORES 6144 Units
CORE CLOCKS Boost:1800 MHz
MEMORY SPEED 19 Gbps
MEMORY 8GB GDDR6X
MEMORY BUS 256-bit
OUTPUT DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
HDCP SUPPORT Y
POWER CONSUMPTION 290 W
POWER CONNECTORS 8-pin x 2
RECOMMENDED PSU 750W
CARD DIMENSION (MM) 305 x 120 x 57 mm
WEIGHT (CARD / PACKAGE) 1160g / 1735g
DIRECTX VERSION SUPPORT 12 API
OPENGL VERSION SUPPORT 4.6
MAXIMUM DISPLAYS 4
VR READY Y
G-SYNC® TECHNOLOGY Y
ADAPTIVE VERTICAL SYNC Y
DIGITAL MAXIMUM RESOLUTION 7680 x 4320
