- Kingston FURY KF436C17BB/8 is a 1G x 64-bit (8GB) DDR4-3600 CL17 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module.
- Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0.
- Each module has been tested to run at DDR4-3600 at a low latency timing of 17-21-21 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V.
- Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- On-Die termination (ODT)
- 16 internal banks; 4 groups of 4 banks each
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Height 1.34” (34mm), w/heatsink
- FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR4-2400 CL17-17-17 @1.2V
- XMP Profile #1: DDR4-3600 CL17-21-21 @1.35V
- XMP Profile #2: DDR4-3000 CL15-17-17 @1.35V
- Product Code: KF436C17BBA/8
- Capacity: 8GB
- RAM: 8 GB DDR4
- Memory Speed: 3600 MHz
- Product Dimensions: 5.25 x 0.28 x 1.62 inches
- Item Dimensions LxWxH 5.25 x 0.28 x 1.62 inches
- Item Weight 1.37 ounces
- CL(IDD):17 cycles
- Row Cycle Time (tRCmin): 45.75ns(min.)
- Refresh to Active/Refresh Command Time (tRFCmin): 350ns(min.)
- Row Active Time (tRASmin): 32ns(min.)
- UL Rating: 94 V - 0
- Operating Temperature: 0°C to +85o°C
- Storage Temperature: -55°C to +100°C
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- On-Die termination (ODT)
- 16 internal banks; 4 groups of 4 banks each
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Height 1.62” (41.2mm), w/heatsink

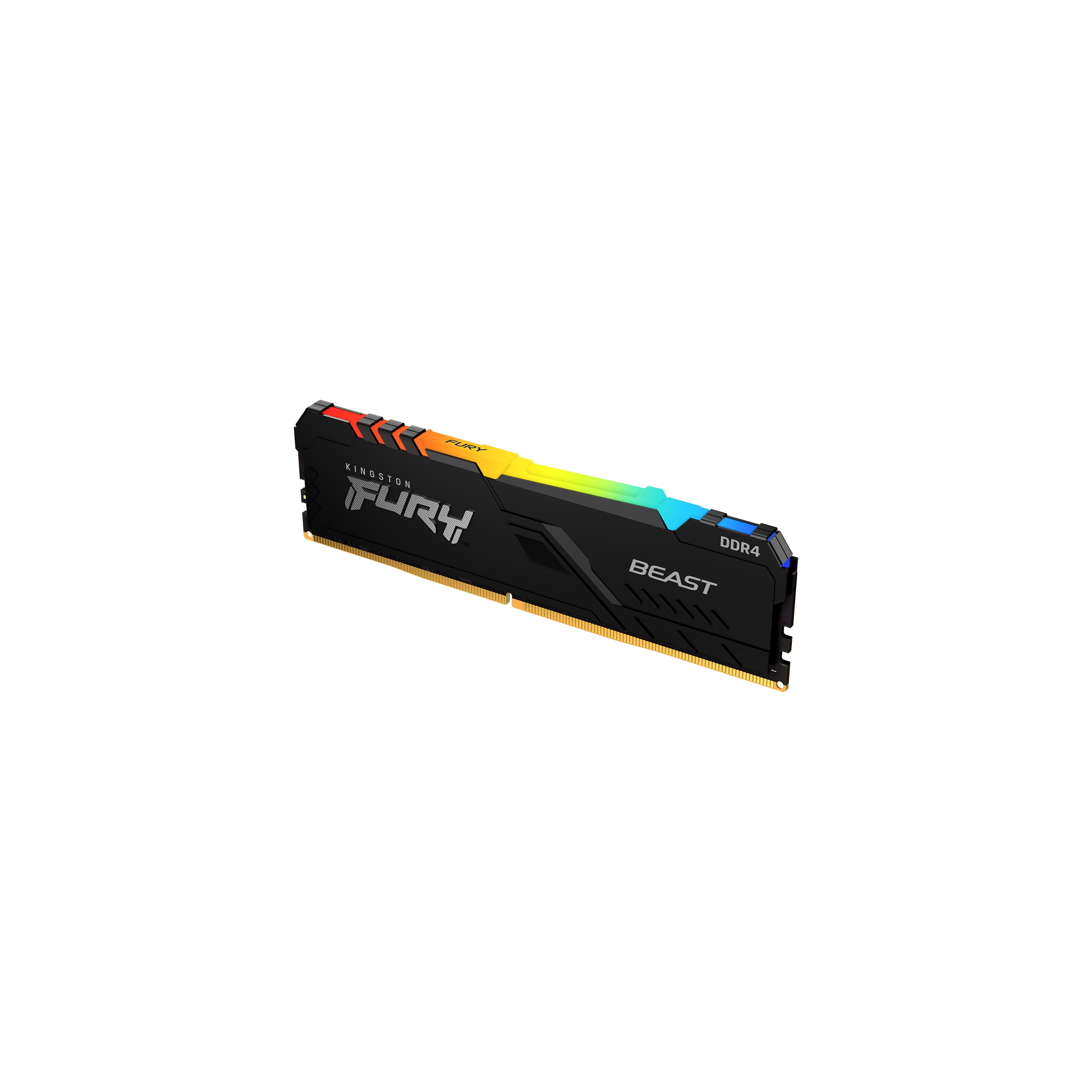

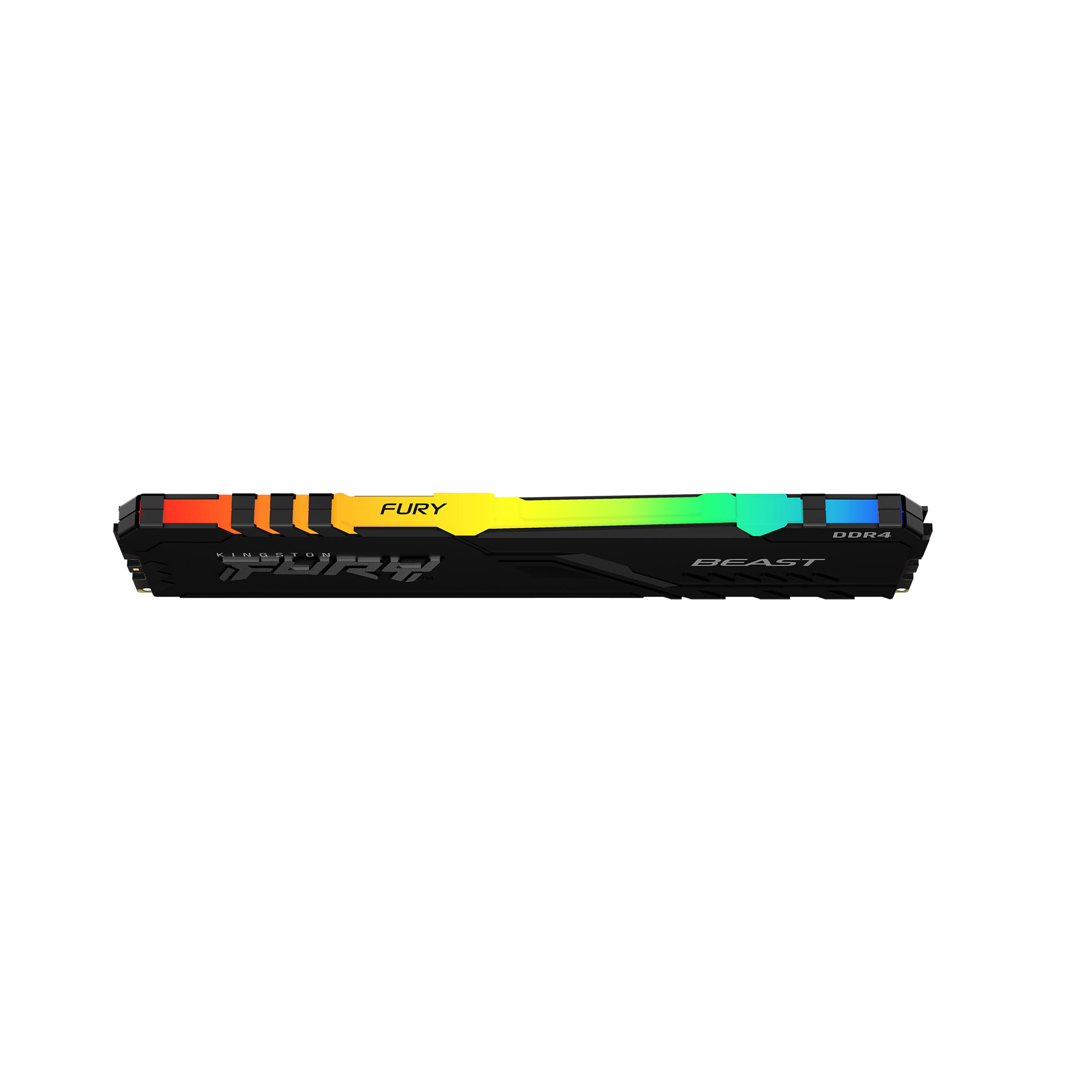

Kingston Fury Beast DDR4 RGB Memory 8GB (8X1) 3600MHZ CL17
Regular price
K179,999.00
